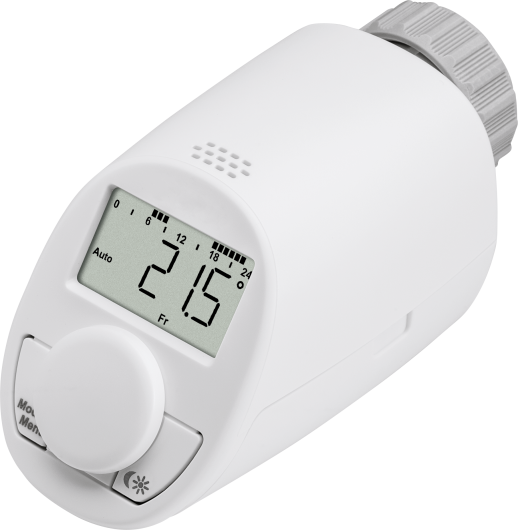

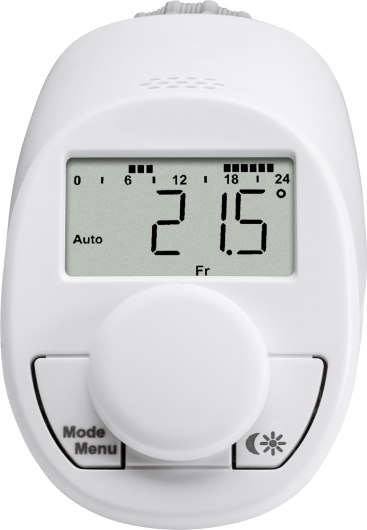

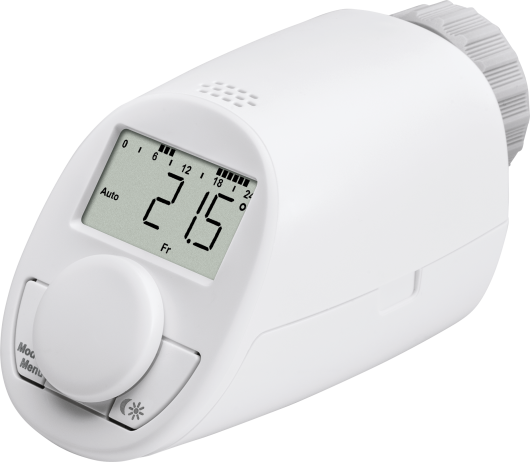

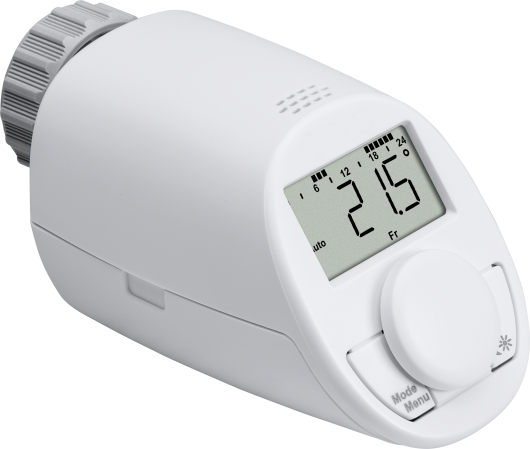

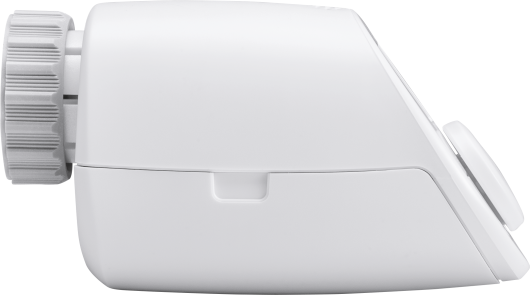

Radiator Thermostat Model N

Radiator thermostat enables time-controlled regulation of room temperature

Radiator Thermostat Model N Radiator Thermostat Model N Radiator Thermostat Model N Radiator Thermostat Model N Radiator Thermostat Model N Radiator Thermostat Model N
Radiator Thermostat Model N
Radiator Thermostat Model N
Radiator Thermostat Model N
Radiator Thermostat Model N
Radiator Thermostat Model N
Radiator Thermostat Model N
Highlights
  • Timeless, simple housing and compact design
  • Low-noise gearbox
  • Easy operation thanks to inclined arrangement of buttons and display - even if the device is difficult to access
  • Easy to mount without having to drain any water or intervene in the heating system; no special tools required
  • Suitable for universal use; compatible with the products of the most popular valve manufacturers
  • Ready to use straight away thanks to preset programming
  • Setpoint temperature can be specified precisely and intuitive (to the nearest 0,5°) via adjustment wheel
  • Can be individually tailored to personal routines - in the week program, for each weekday up to 3 heating phases (7 change settings) can be set separately
  • Automatic frost protection and temperature fall detection
  • Valve protection function: Automatic protection against calcification thanks to regular opening and closing of valves
  • Boost function for heating up the radiator quickly and briefly
  • Tamper-proof thanks to child-proof lock/operating lock
Technical Specifications

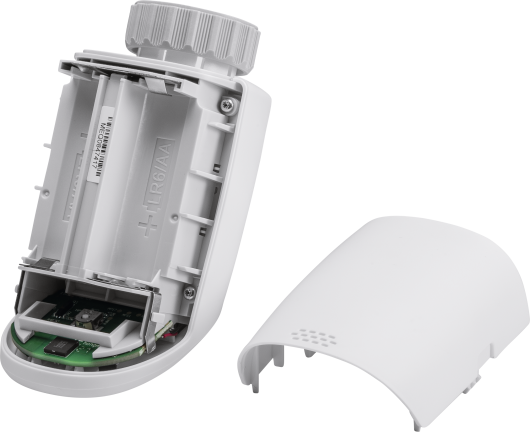

Supply voltage
2x 1.5 V LR6/Mignon/AA
Current consumption
100 mA max.
Battery life
Approx. 3 years (3 heating cycles)
Display
LCD
Degree of protection
IP20
Threaded connection
M30 x 1.5 mm
Dimensions (W x H x D)
55 x 60 x 102 mm
Weight
160 g (incl. batteries)
Ordering Informations
Product Name
CC-RT-N-EQ
Item Number
132231K0
EAN Code
4047976132225
Package
75
Dimesions incl. Packaging
69 x 66 x 111+30 mm
Weight incl. Packaging
217,4 g
Downloads
Manual
Manual: FR/PL
Product Data Sheet
Declaration of conformity
