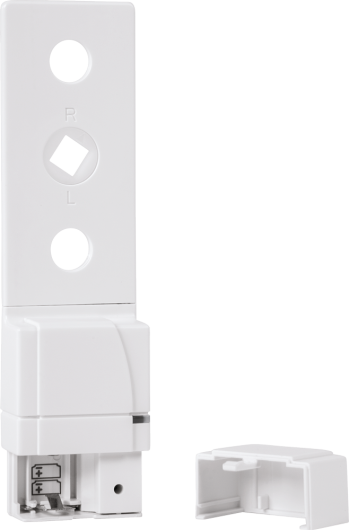

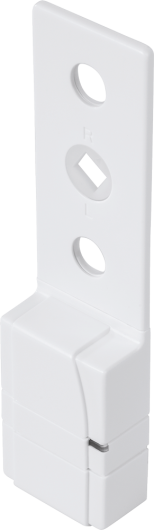

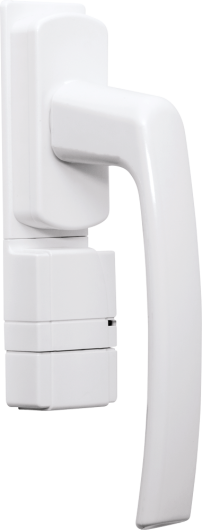

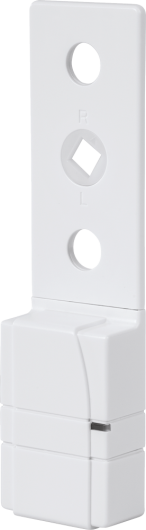

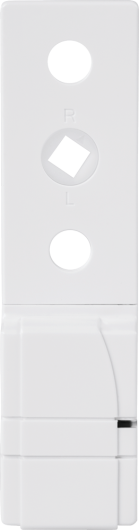

HomeMatic Wireless Window Rotary Handle Sensor

Small and inconspicuous wireless window rotary handle sensor detects the current position of the window

HomeMatic Wireless Window Rotary Handle Sensor HomeMatic Wireless Window Rotary Handle Sensor HomeMatic Wireless Window Rotary Handle Sensor HomeMatic Wireless Window Rotary Handle Sensor HomeMatic Wireless Window Rotary Handle Sensor HomeMatic Wireless Window Rotary Handle Sensor
HomeMatic Wireless Window Rotary Handle Sensor
HomeMatic Wireless Window Rotary Handle Sensor
HomeMatic Wireless Window Rotary Handle Sensor
HomeMatic Wireless Window Rotary Handle Sensor
HomeMatic Wireless Window Rotary Handle Sensor
HomeMatic Wireless Window Rotary Handle Sensor
  • Highlights
  • Technical Specifications
  • Ordering Informations
  • Downloads
Highlights
  • The mechanical sensor detects the position of the window handle and facilitates the rapid detection of open, tilted or closed windows
  • Suitable for standard window handles
  • Battery-powered
  • Compact and inconspicuous design
  • Easy to install, no need for drilling and gluing
  • Tamper protection
  • Secure thanks to AES authentication
Technical Specifications
Supply voltage
2x LR44 coin cells
Typ. open area RF range
200 m
Radio frequency
868.3 MHz
Battery life
approx. 2 years
Degree of protection
IP 20
Dimensions (W x H x D)
32 x 120 x 16 mm
Weight
22 g (not incl. batteries)
Ordering Informations
Product Name
HM-Sec-RHS
Item Number
76789
EAN Code
4047976767892
Package
72
Dimesions incl. Packaging
184 x 93 x 48 mm
Weight incl. Packaging
113,0 g
Downloads
Manual
Product Data Sheet
Declaration of conformity
