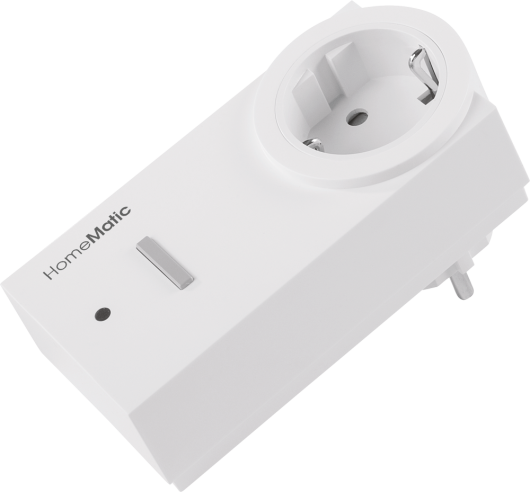

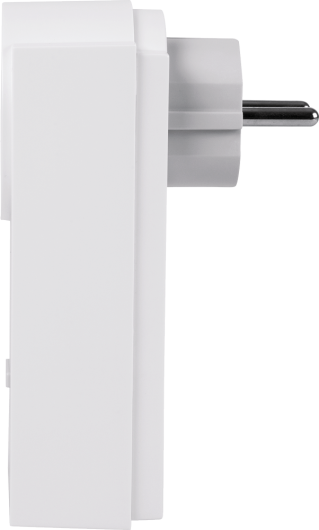

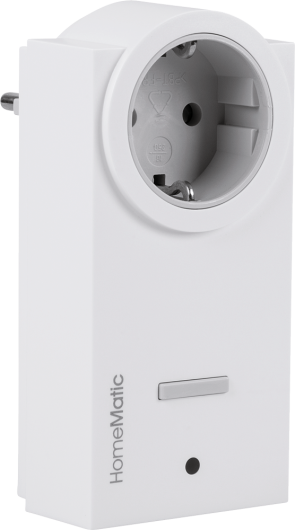

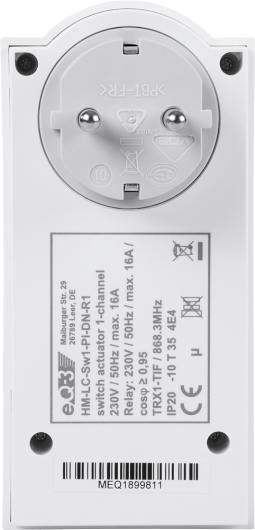

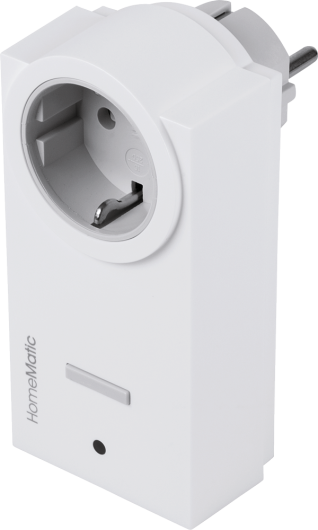

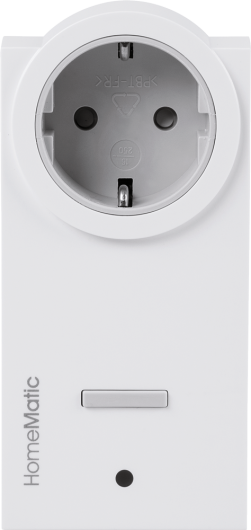

Wireless Switch Actuator 1-channel, plug adapter type F

Wireless switch actuator enables switching of connected loads via radio commands

Wireless Switch Actuator 1-channel, plug adapter type F Wireless Switch Actuator 1-channel, plug adapter type F Wireless Switch Actuator 1-channel, plug adapter type F Wireless Switch Actuator 1-channel, plug adapter type F Wireless Switch Actuator 1-channel, plug adapter type F Wireless Switch Actuator 1-channel, plug adapter type F
Wireless Switch Actuator 1-channel, plug adapter type F
Wireless Switch Actuator 1-channel, plug adapter type F
Wireless Switch Actuator 1-channel, plug adapter type F
Wireless Switch Actuator 1-channel, plug adapter type F
Wireless Switch Actuator 1-channel, plug adapter type F
Wireless Switch Actuator 1-channel, plug adapter type F
Highlights
  • Can be easily mounted without tools - after the device has been plugged in, it is immediately ready for use
  • Easy operation - directly on the device or via the WebUI of the Central Control Unit CCU2
  • Multiple remote controls can be taught-in
  • Low current consumption
  • Current switching status of device is indicated by device LED
  • Switch on and off delay as well as switch on and switch off duration can be individually adjusted
  • Rugged design: cosφ=1: 40,000 switching cycles
  • Suitable for Germany, Austria, the Netherlands and Luxembourg
Technical Specifications
Supply voltage
230 V/50 Hz
Current consumption
16 A max.
Standby power consumption
< 0.6 W
Degree of protection
IP20
Ambient temperature
-10 to +35 °C
Radio frequency
868.3 MHz
Typ. open area RF range
300 m
Max. switching capacity
3680 W
Load type
ohmic load
Relay
NO Contact, 1-pole, μ contact
Dimensions (W x H x D)
59 x 122 x 40 mm (not incl. mains plug)
Weight
174 g
Ordering Informations
Product Name
HM-LC-Sw1-Pl-DN-R1
Item Number
132989A0
EAN Code
4047976329892
Package
32
Dimesions incl. Packaging
184 x 140 x 73 mm
Weight incl. Packaging
350,0 g
