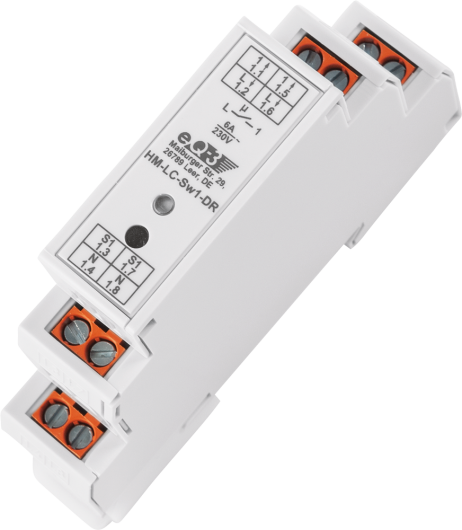

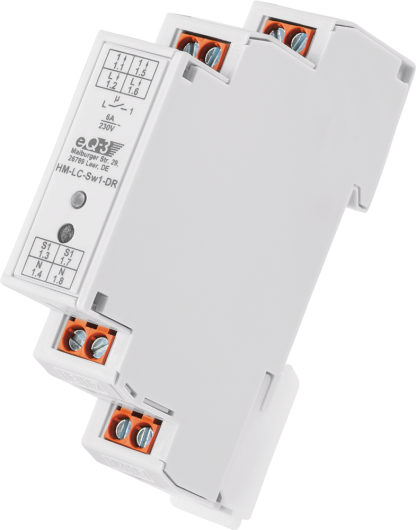

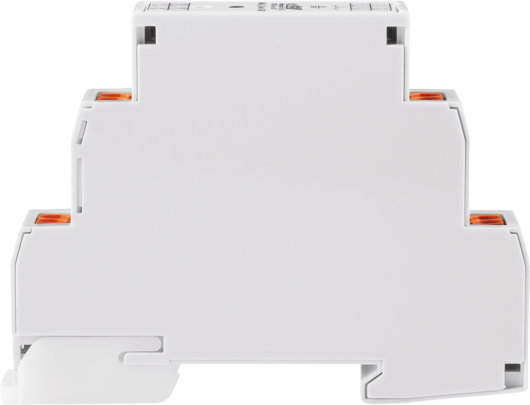

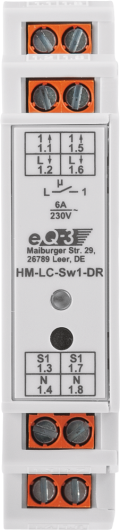

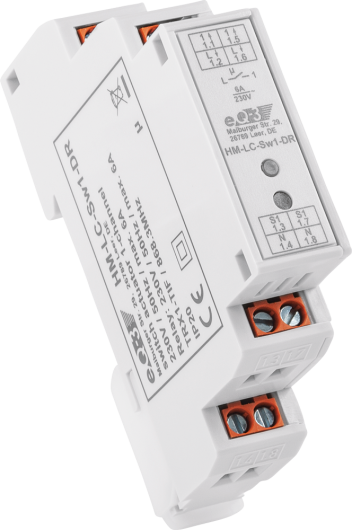

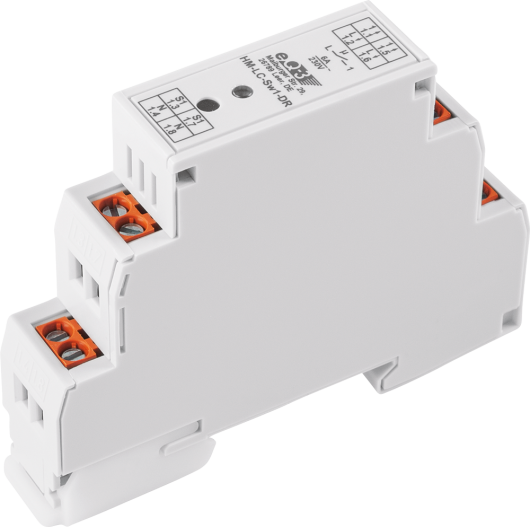

Wireless Switch Actuator 1-channel, DIN rail mount

Can replace existing trigger impulse switches

Wireless Switch Actuator 1-channel, DIN rail mount Wireless Switch Actuator 1-channel, DIN rail mount Wireless Switch Actuator 1-channel, DIN rail mount Wireless Switch Actuator 1-channel, DIN rail mount Wireless Switch Actuator 1-channel, DIN rail mount Wireless Switch Actuator 1-channel, DIN rail mount
Wireless Switch Actuator 1-channel, DIN rail mount
Wireless Switch Actuator 1-channel, DIN rail mount
Wireless Switch Actuator 1-channel, DIN rail mount
Wireless Switch Actuator 1-channel, DIN rail mount
Wireless Switch Actuator 1-channel, DIN rail mount
Wireless Switch Actuator 1-channel, DIN rail mount
Highlights
  • Connected loads can be switched on or off via the switch actuator
  • 230 V switching input can replace existing trigger impulse switches
  • Loads of up to 6 A/230 V can be connected
  • Standard DIN rail housing with width of 1 WM
  • For the independent switching of components without an RS485 connection or an external antenna
  • Can be configured and controlled wirelessly via the Homematic Central Control Unit
  • Device is equipped with operation/configuration button and display
  • Low energy consumption
Technical Specifications
Supply voltage
230 V/50 Hz
Current consumption
6 A (max.)
Power consumption in standby
0.35 W
Max. switching capacity
1380 W
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Load type
ohmic load
Installation
mounting rail (DIN rail) according to EN50022
Dimensions (W x H x D)
18 x 65 x 87 mm
Weight
63 g
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-LC-Sw1-DR
Item Number
141378A0
EAN Code
4047976413782
Package
144
Dimesions incl. Packaging
122 x 93 x 36 mm
Weight incl. Packaging
121,9 g
Downloads
Manual
Product Data Sheet
Declaration of conformity

Combination Recommendations
