Highlights
- Comfortable, easy and secure operation without the need of keys
- Can be used on all doors with a standard cylinder lock
- Easy installation without any drilling
- Emergency operation for manual opening of doors

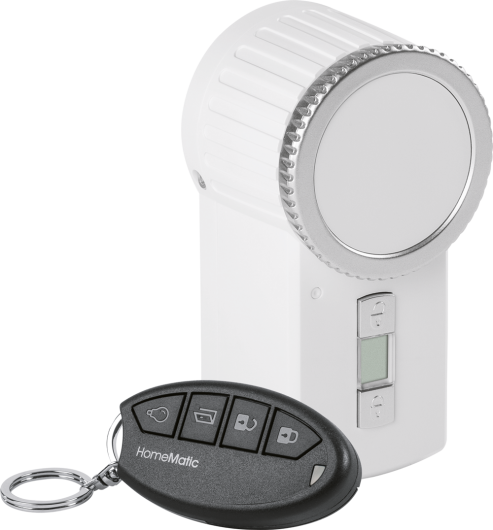

- Comfortable operation via Homematic Remote Control 4 buttons KeyMatic
- Secure thanks to AES authentication
- Conventional key can continue to be used
Technical Specifications
Supply voltage
3x 1.5 V LR6/mignon/AA
Battery life
1/2 year (typically), based on a usage rate of 8 times per day
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Housing
ABS
Housing colour
white
Display
LCD 9 x 12 mm (symbols and 14-segment display)
Dimensions (W x H x D)
64 x 124 x 57 mm
Weight
335 g (incl. batteries)
Radio frequency band
868.0-868.6 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-Sec-Key
Item Number
151137A0
EAN Code
4047976511372
Package
18
Dimesions incl. Packaging
187 x 184 x 97 mm
Weight incl. Packaging
708,0 g
