Highlights
- Infinitely variable dimming of loads from 3 VA with a switching capacity of up to 80 VA
- 230 V switching input can replace existing trigger impulse switches
- For independent switching of components without RS485 connection or external antenna
- Device is equipped with an operation/configuration button and display
- Very low stand by current consumption of only 0.45 W
- Designed for space-saving installation thanks to compact 1 WM standard DIN rail housing
- Can be configured and controlled wirelessly via the Homematic Central Control Unit
Technical Specifications
Supply voltage
230 V/50 Hz
Current consumption
0.35 A (max.)
Power consumption in standby
0.45 W
Switching capacity
3 to 80 VA
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Load type
ohmic and capacitive lamp load
Installation
mounting rail (DIN rail) according to EN50022
Dimensions (W x H x D)
18 x 65 x 87 mm
Weight
52 g
Radio frequency band
868.0-868.6 MHz
Typ. open area RF range
140 m
Ordering Informations
Product Name

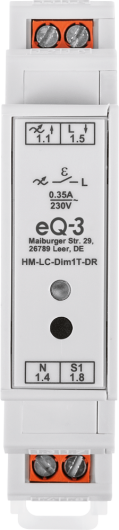

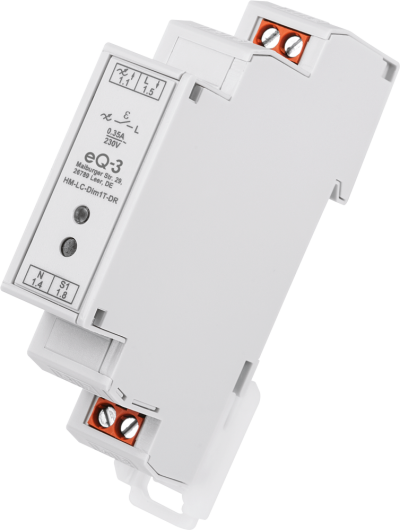

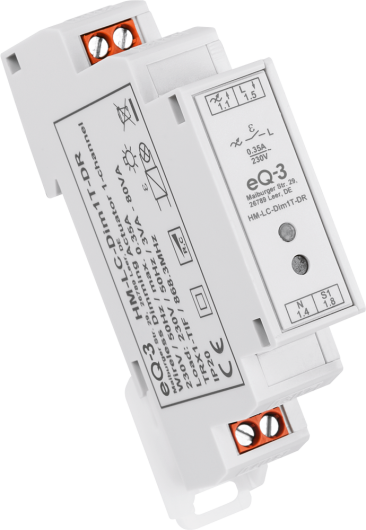

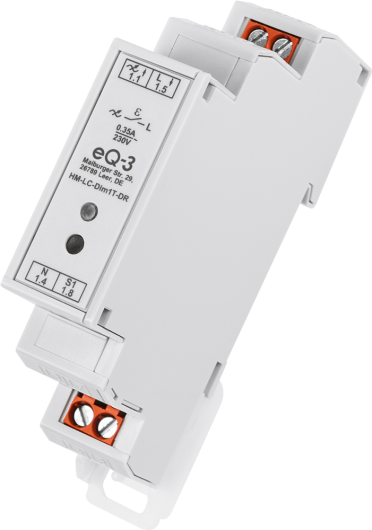

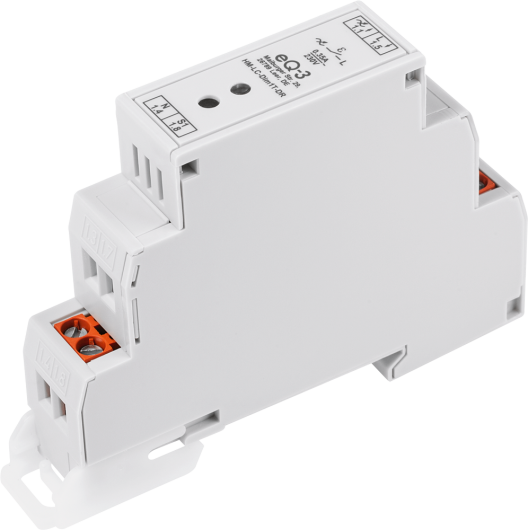

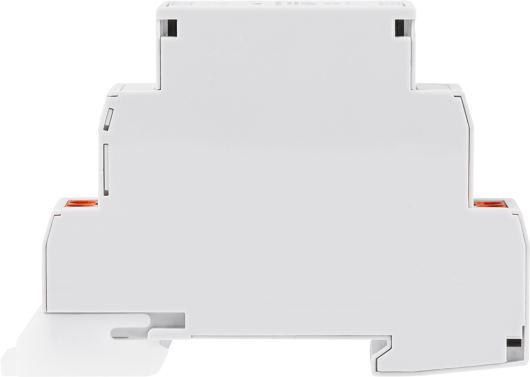

HM-LC-Dim1T-DR
Item Number
151589A0
EAN Code
4047976515899
Package
144
Dimesions incl. Packaging
122 x 93 x 36 mm
Weight incl. Packaging
121,9 g
