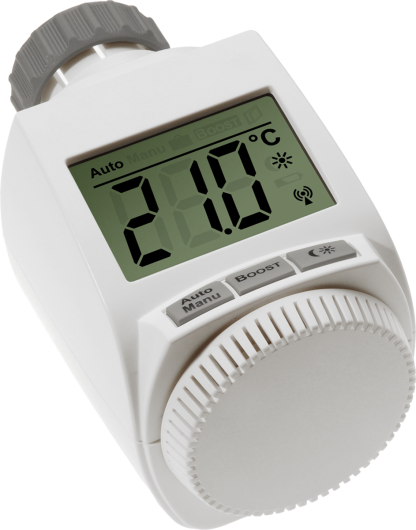

MAX! Radiator Thermostat

Automatic regulation of radiators in connections with the MAX! Cube LAN Gateway and/or the MAX! Wall Thermostat+

MAX! Radiator Thermostat MAX! Radiator Thermostat
MAX! Radiator Thermostat
MAX! Radiator Thermostat
  • Can be individually tailored to personal routines thanks to the freely programmable heating phases (13 switching times per day for temperature switch-over) via the MAX! software

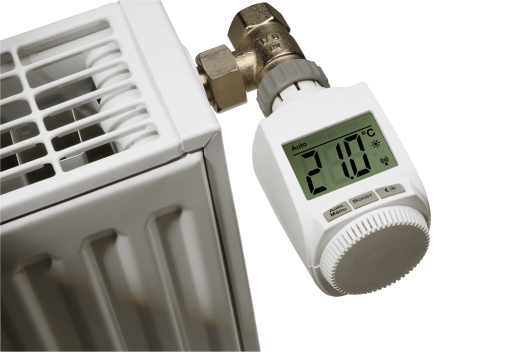

  • Easy installation without having to intervene in the heating system; no special tools required
  • Ready to use straight away thanks to pre-set week programs
  • Precise temperature adjustment (to the nearest 0.5°C)
  • Automatic temperature reduction when the windows are opened for ventilation and adjustment of the temperature when they are closed in connection with MAX! Window Sensors togehter with a MAX! Cube or a MAX! Wall Thermostat
  • Frost protection function automatically opens valves if necessary
  • Limescale protection automatically protects against calcification thanks to regular opening and closing of the valves
  • Boost button for heating up the radiator immediately
  • Tamper-proof thanks to child-proof lock/operating lock
  • Theft protection available as an option
Technical Specifications
Supply voltage
2x 1.5 V LR6/mignon/AA batteries
Current consumption
100 mA max.
Battery life
2 years (typ.)
Threaded connection
M30 x 1.5 mm
Dimensions (W x H x D)
60 x 65 x 100 mm
216 g (incl. batteries)
Radio frequency
868.3 MHz
Typ. open area RF range
> 100 m
Ordering Informations
Product Name
Item Number
EAN Code
Dimesions incl. Packaging
122 x 112 x 97 mm
Weight incl. Packaging
339,0 g
