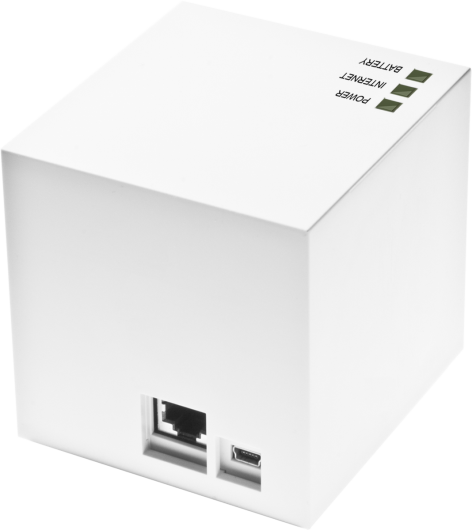

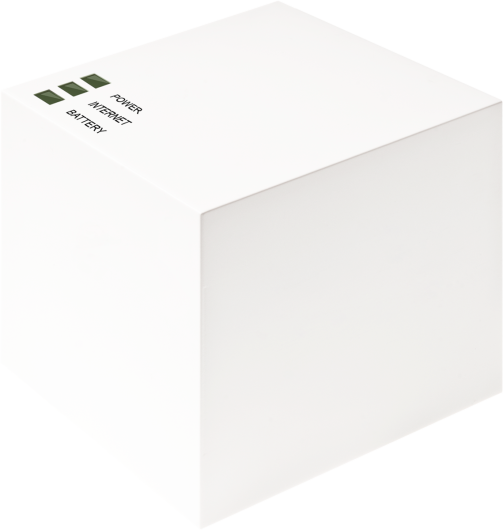

MAX! Cube LAN Gateway

Interface between MAX! wireless components and home network

MAX! Cube LAN Gateway MAX! Cube LAN Gateway
MAX! Cube LAN Gateway
MAX! Cube LAN Gateway
  • Flexible heating control at any place via MAX! smartphone apps (Android, iOS) or via the MAX! portal with any Internet connection
  • Quick and easy local configuration of all MAX! components via the MAX! software
  • Increased security thanks to encrypted, authenticated communication within the network (AES-128) as well as authenticated bidirectional wireless communication with all components
  • Easy to install and use without any need of network know-how: no configuration of router or firewall required
  • All individual device settings and parameters are stored locally so the system can even be operated independently of a PC or active Internet connection
  • Comfortable control of up to 50 devices in max. 10 rooms
  • Three LEDs for operational status display
Technical Specifications
Supply voltage
Input: 100–240 V~/350 mA, Output: 5 V=/550 mA
Power consumption in standby
1.1 W
Degree of protection
Dimensions (W x H x D)
80 x 80 x 80 mm
130 g
Radio frequency
868.3 MHz
Typ. open area RF range
> 100 m
RJ-45 (Ethernet)
Ordering Informations
Product Name
Item Number
EAN Code
Dimesions incl. Packaging
122 x 112 x 147
Weight incl. Packaging
460,0 g
Product Data Sheet
Declaration of conformity
