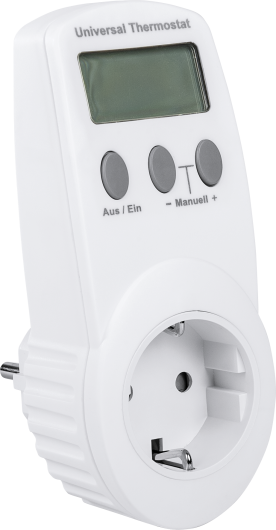

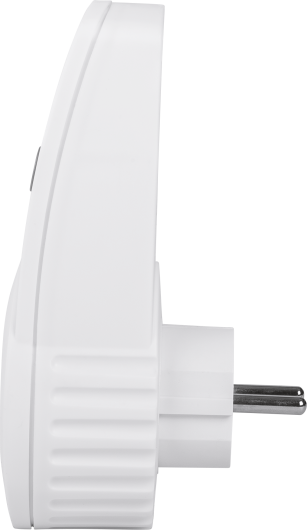

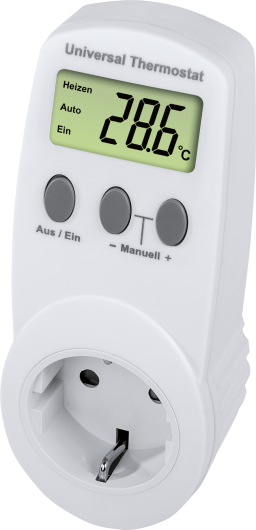

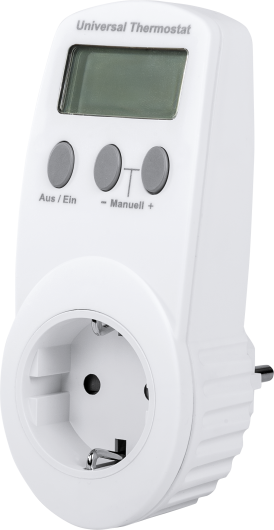

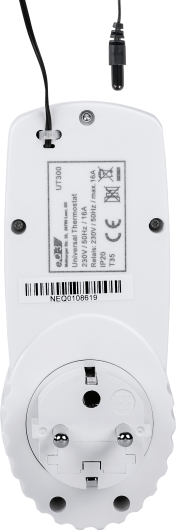

Universal Thermostat UT300

Electronic thermostat, suitable for universal use

Universal Thermostat UT300 Universal Thermostat UT300 Universal Thermostat UT300 Universal Thermostat UT300 Universal Thermostat UT300 Universal Thermostat UT300
Universal Thermostat UT300
Universal Thermostat UT300
Universal Thermostat UT300
Universal Thermostat UT300
Universal Thermostat UT300
Universal Thermostat UT300
Highlights
  • On/off switching of connected loads, depending on measured temperatures
  • Can be used as heating or cooling thermostat e.g. in connection with a heating fan or air condition fan (individual definition of switch-on and switch-off temperature)

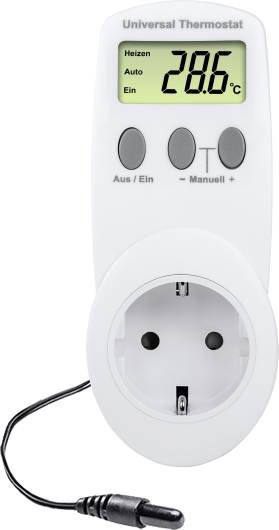

  • Remote temperature sensor with 2 m connecting cable detects temperature data in a range of -40 to +99 °C
  • Easy-to-read and illuminated display
  • Automatic and manual operation enabled
  • Easy operation directly on the device
  • Quick installation without any tools – immediately ready for use after plugging
    into a socket

The Eqiva Universal Thermostat UT300 is used for switching electrical devices, depending on the temperature detected by the sensor. The electronic thermostat for universal use reliably switches heaters, fans or any other devices with a maximum power consumption of 3680 Watt. The temperature sensor is attached to a two-meter measuring cable and thus offers flexible positioning of the sensor. The temperatures for switching on and off can be adjusted separately and thus offer operation in heating as well as in cooling mode. Settings are changed directly via the device and displayed via a LC display. As the Universal Thermostat has been designed as plug adapter, the device is ready for universal use without any installation effort. The temperature detection range is between -40 and +99 °C.

Technical Specifications
Supply voltage
230 V/50 Hz
Current consumption
1.3 W
Maximum switching capacity
3,680 W
Load type
ohmic load
Degree of protection
IP20
Temperature sensor
external (2 m connecting cable)
Operating modes
heating or cooling operation (switch-on and switchoff temperature can be adjusted separately)
Temperature sensor
external (2 m connecting cable)
Sensor temperature range
-40 to +99 °C
Ambient temperature
-10 to +35 °C
Dimensions (W x H x D)
55 x 134 x 40 mm (not incl. plug)
Weight
225 g
Ordering Informations
Product Name
UT300
Item Number
132921D0
EAN Code
4047976329212
Package
40
Dimesions incl. Packaging
140 x 80 x 92 mm
Weight incl. Packaging
286,8 g
Downloads
Manual
Declaration of conformity

Combination Recommendations
