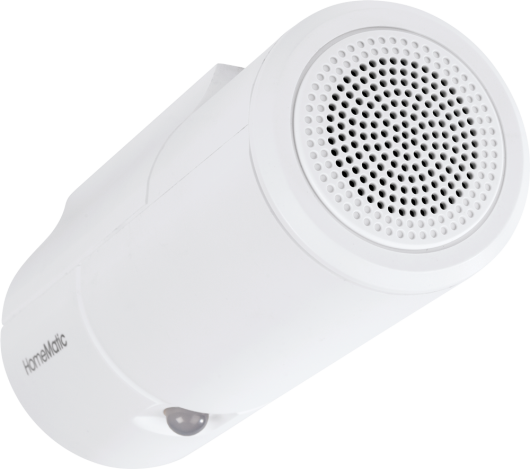

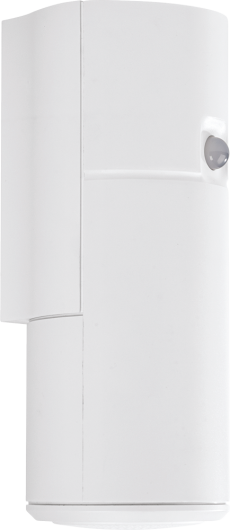

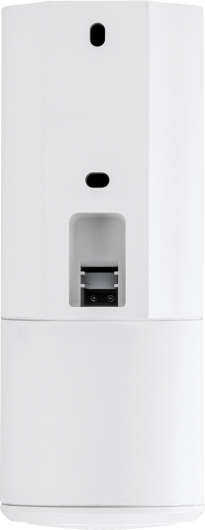

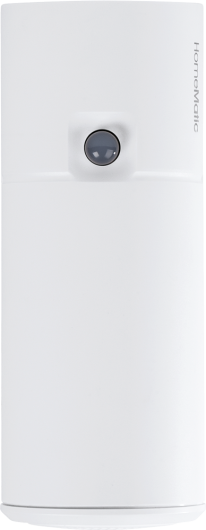

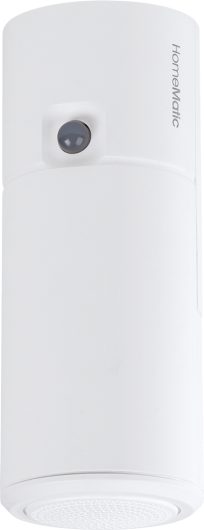

HomeMatic Wireless Siren with signal light

Reliable audible and visual signal output in alarm cases via highperformance piezo speaker and signal lamp

HomeMatic Wireless Siren with signal light HomeMatic Wireless Siren with signal light HomeMatic Wireless Siren with signal light HomeMatic Wireless Siren with signal light HomeMatic Wireless Siren with signal light HomeMatic Wireless Siren with signal light
HomeMatic Wireless Siren with signal light
HomeMatic Wireless Siren with signal light
HomeMatic Wireless Siren with signal light
HomeMatic Wireless Siren with signal light
HomeMatic Wireless Siren with signal light
HomeMatic Wireless Siren with signal light
Highlights
  • Offers a wide range of applications and controlling options via 4 channels
  • The exterior and/or interior of a building can be monitored
  • Device is controlled and alarms are triggered via Homematic remote controls and sensors (e.g. Homematic Wireless Motion Detector or Wireless Window Sensor)
  • Individual adjustments to personal needs via Homematic Central Control Unit - select e.g. between different alarm tones or alarm duration
  • Easy and flexible mounting on walls
Technical Specifications
Supply voltage

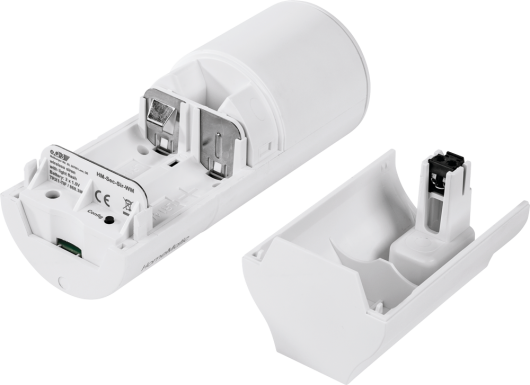

2x 1.5 V LR14/baby/C
Battery life
2 years (typ.)
Volume
>85 dB in 3 m distance
Current consumption
200 mA max.
Standby power consumption
max. 0.1 mA
Degree of protection
IP20
Dimensions (W x H x D)
60 x 155 x 69 mm
Weight
323 g (incl. batteries)
Radio frequency
868.3 MHz
Typ. open area RF range
160 m
Ordering Informations
Product Name
HM-Sec-Sir-WM
Item Number
142478A0
EAN Code
4047976424788
Package
32
Dimesions incl. Packaging
184 x 140 x 73 mm
Weight incl. Packaging
505,0 g
Downloads
Manual
Product Data Sheet
Declaration of conformity

Combination Recommendations
