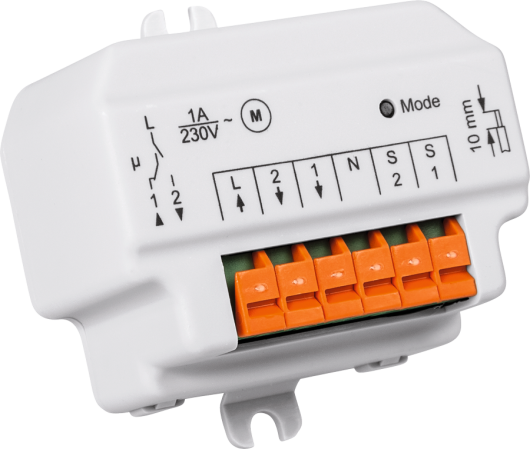

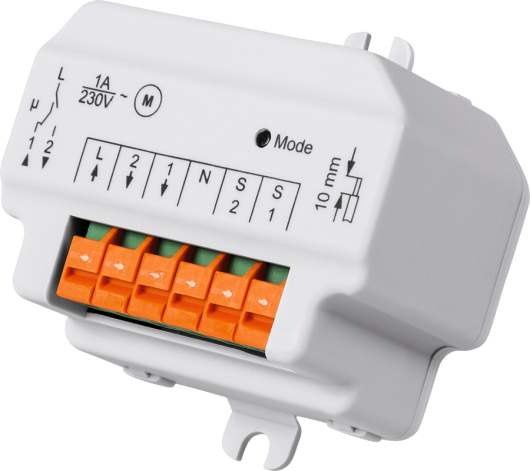

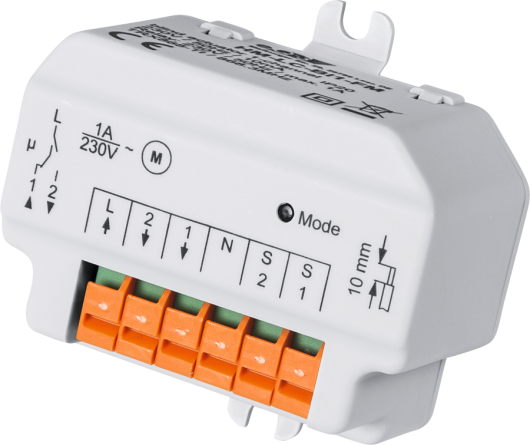

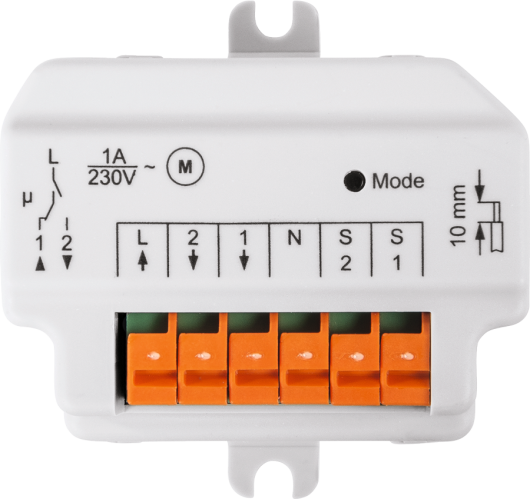

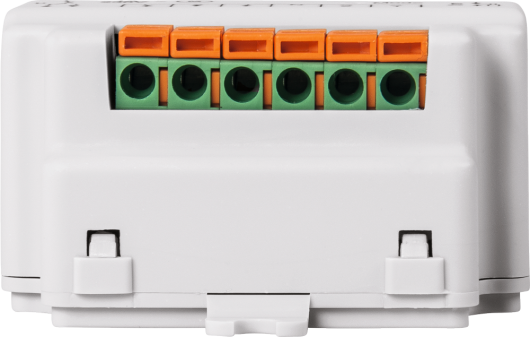

HomeMatic Wireless Shutter Actuator 1-channel, flush-mount

Small and compact wireless-controlled shutter actuator for concealed installation into branching and switch boxes

HomeMatic Wireless Shutter Actuator 1-channel, flush-mount HomeMatic Wireless Shutter Actuator 1-channel, flush-mount HomeMatic Wireless Shutter Actuator 1-channel, flush-mount HomeMatic Wireless Shutter Actuator 1-channel, flush-mount HomeMatic Wireless Shutter Actuator 1-channel, flush-mount HomeMatic Wireless Shutter Actuator 1-channel, flush-mount
HomeMatic Wireless Shutter Actuator 1-channel, flush-mount
HomeMatic Wireless Shutter Actuator 1-channel, flush-mount
HomeMatic Wireless Shutter Actuator 1-channel, flush-mount
HomeMatic Wireless Shutter Actuator 1-channel, flush-mount
HomeMatic Wireless Shutter Actuator 1-channel, flush-mount
HomeMatic Wireless Shutter Actuator 1-channel, flush-mount
Highlights
  • Allows the control of shutters
  • Suitable for use with numerous standard shutter motors
  • Connections for conventional push-buttons
  • Low standby power consumption
  • Signal LED enables confirmation of radio signals
Technical Specifications
Supply voltage
230 V/50 Hz
Typ. open area RF range
200 m
Radio frequency
868.3 MHz
Relay contact
1 NO contact, 1 changeover contact
Max. output current
250 W motor load
Stand-by power consumption
0.5 W
Degree of protection
IP20
Dimensions (W x H x D)
53 x 53 x 30 mm
Weight
47.8 g
Ordering Informations
Product Name
HM-LC-Bl1-FM
Item Number
76799
EAN Code
4047976767991
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
120.3 g
Downloads
Manual
Product Data Sheet
Declaration of conformity
