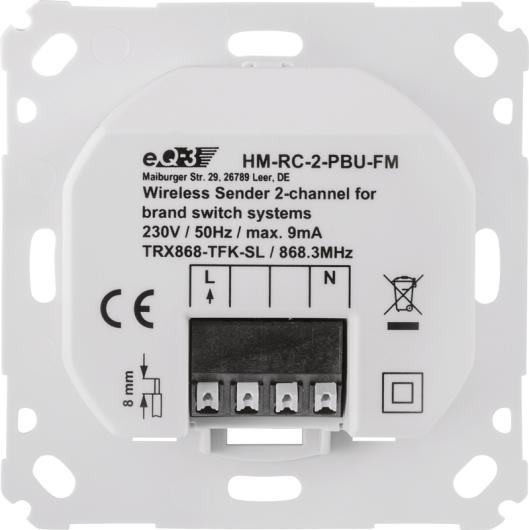

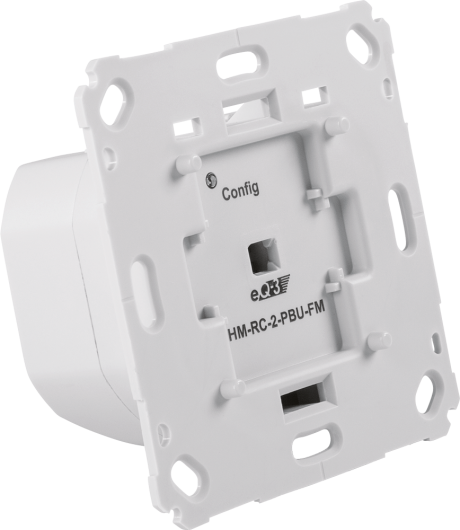

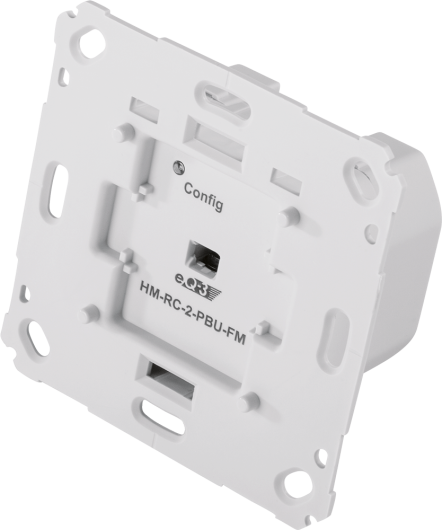

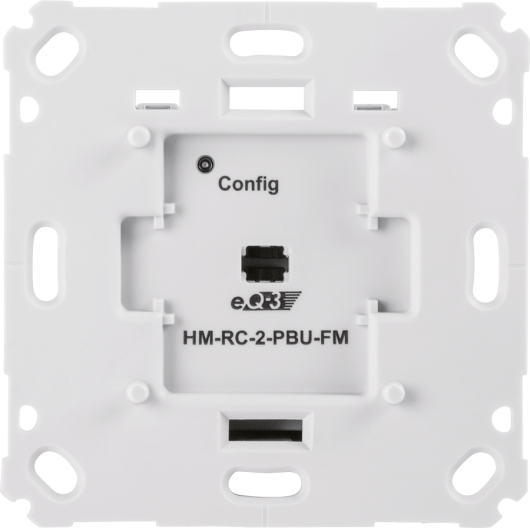

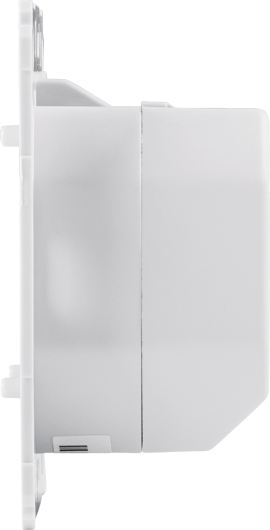

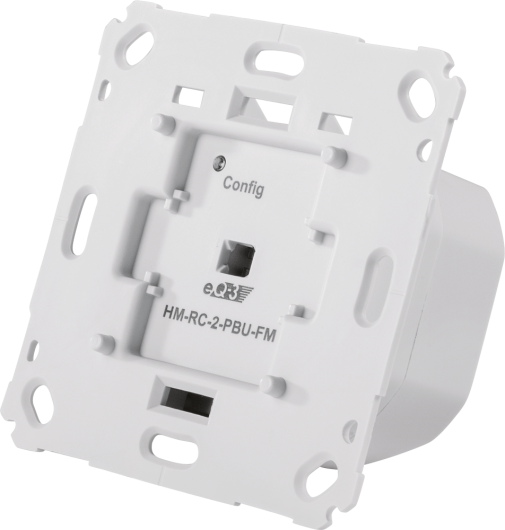

HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount

Connected Homematic devices can be controlled via two channels per rocker switch

HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount
HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount
HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount
HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount
HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount
HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount
HomeMatic Wireless Remote Control 2-channel for brand switch systems, flush-mount
Highlights
  • 230 V mains operation
  • Compact design for installation in size 60 flush-mounting box
  • Easy to align with outer contour
  • With the appropriate adapter, the device can be integrated into the most popular switch designs of leading manufacturers: Busch-Jaeger, Gira, Merten, Berker, Jung, düwi, Kopp
  • Can also be integrated into existing installations in a cost-effective way by making use of existing frames and rockers
  • Easy to assemble and install
  • Multiple applications in connection with the CCU2
Technical Specifications
Supply voltage
230 V/50 Hz
Current consumption
9 mA max.
Power consumption in standby
0.22 W
Degree of protection
IP20
Ambient temperature
5 to 35 °C
Installation
only in normal commercial switch boxes (device boxes) in accordance with DIN 49073-1
Dimensions (W x H x D)
71 x 71 x 37 mm (depth for flush-mounting: 32 mm)
Weight
46 g
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-RC-2-PBU-FM
Item Number
142237A0
EAN Code
4047976422371
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
119 g
Downloads
Manual
Product Data Sheet
Declaration of conformity
