HomeMatic Wireless Push-Button 2 channels, surface-mount

Flexible push-button with two channels for central control of connected Homematic devices

HomeMatic Wireless Push-Button 2 channels, surface-mount HomeMatic Wireless Push-Button 2 channels, surface-mount HomeMatic Wireless Push-Button 2 channels, surface-mount HomeMatic Wireless Push-Button 2 channels, surface-mount HomeMatic Wireless Push-Button 2 channels, surface-mount HomeMatic Wireless Push-Button 2 channels, surface-mount
HomeMatic Wireless Push-Button 2 channels, surface-mount
HomeMatic Wireless Push-Button 2 channels, surface-mount
HomeMatic Wireless Push-Button 2 channels, surface-mount
HomeMatic Wireless Push-Button 2 channels, surface-mount
HomeMatic Wireless Push-Button 2 channels, surface-mount
HomeMatic Wireless Push-Button 2 channels, surface-mount
Highlights
  • All Homematic actuators can be taught-in directly
  • LED signals sending and confirmation of commands and gives information about error messages
  • Easy to integrate into existing switches from the following manufacturers:
    Berker (S.1, B.1, B.3, B.7 Glas), GIRA (System 55, Standard 55, E2, E22, Event, Esprit), Merten (1-M, Atelier-M, M-Smart, M-Arc, M-Star, M-Plan), JUNG (A 500, AS 500, A plus, A creation) and ELSO (Joy)

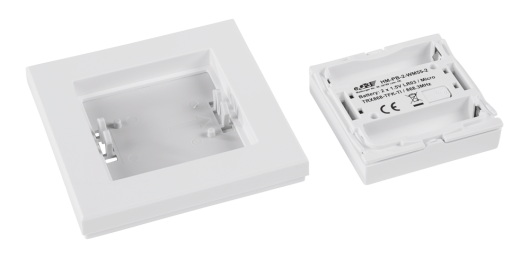

  • Can also be mounted in the clip-on frame supplied
  • Can be positioned anywhere by screwing or sticking it in place
  • It is e.g. possible to switch lights on and off or dim lights brighter or darker
Technical Specifications
Supply voltage
2x 1.5 V LR03/micro/AAA
Battery life
5 years (typ.)
Degree of protection
IP20
Ambient temperature
-10°C to +55°C
Dimensions (W x H x D)
86 x 86 x 16.5 mm
Weight
868.3 MHz
Typ. open area RF range
100 m
Ordering Informations
Product Name
HM-PB-2-WM55-2
Item Number
131774
EAN Code
4047976317745
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
163,9 g
Downloads
Manual
Product Data Sheet
Declaration of conformity
