HomeMatic Remote Control 4 buttons, alarm

Handy wireless remote control

HomeMatic Remote Control 4 buttons, alarm HomeMatic Remote Control 4 buttons, alarm HomeMatic Remote Control 4 buttons, alarm HomeMatic Remote Control 4 buttons, alarm HomeMatic Remote Control 4 buttons, alarm HomeMatic Remote Control 4 buttons, alarm
HomeMatic Remote Control 4 buttons, alarm
HomeMatic Remote Control 4 buttons, alarm
HomeMatic Remote Control 4 buttons, alarm
HomeMatic Remote Control 4 buttons, alarm
HomeMatic Remote Control 4 buttons, alarm
HomeMatic Remote Control 4 buttons, alarm
Highlights
  • Remote control with four buttons for controlling the alarm functions of your CCU and to switch lights on and off
  • Via the WebUI user interface, you can connect the remote control with other Homematic devices, such as motion detectors or window sensors and individually configure alarm functions via CCU programs (”if-then-connections”)
  • Space-optimised design enables use of AAA batteries

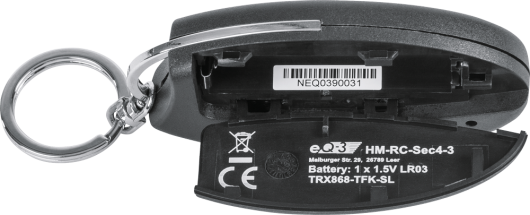

  • Batteries can be replaced easily without tools
  • Haptic perception of buttons
  • Glass fibre reinforced and halogen-free material offers optimal stability and environmental compatibility
  • Secure operation thanks to AES authentication and direct feedback during wireless communication via duo colour LED
  • Convenient key ring supplied
Technical Specifications
Supply voltage
1x 1,5 V LR03/micro/AAA
Current consumption
100 mA max.
Battery life
> 3 years (based on a usage rate of 10 times per day)
Degree of protection
IP20
Ambient temperature
-10 to +55 °C
Dimensions (W x H x D)
38 x 75 x 14 mm
Weight
38 g (incl. batteries)
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-RC-Sec4-3
Item Number
130466A0
EAN Code
4047976404667
Package
144
Dimesions incl. Packaging
122 x 93 x 36 mm
Weight incl. Packaging
98 g
Downloads
Manual
Product Data Sheet
