Highlights
- Remote control with four buttons for controlling the KeyMatic Wireless Door Lock Actuator and to switch lights on and off
- Space-optimised design enables use of AAA batteries

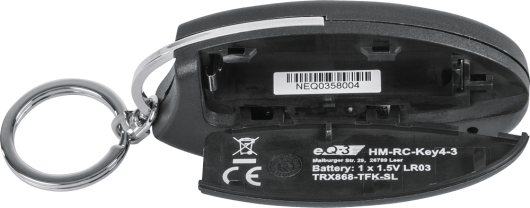

- Batteries can be replaced easily without tools
- Haptic perception of buttons
- Glass fibre reinforced and halogen-free material offers optimal stability and environmental compatibility
- Secure operation thanks to AES authentication and direct feedback during wireless communication via duo colour LED
- Convenient key ring supplied
Technical Specifications
Voltage supply
1x 1,5 V LR03/micro/AAA
Current consumption
100 mA max.
Battery life
> 3 years (based on a usage rate of 10 times per day)
Degree of protection
IP20
Ambient temperature
-10 to +55 °C
Dimensions (W x H x D)
38 x 75 x 14 mm
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-RC-Key4-3
Item Number
130459A0
EAN Code
4047976404599
Package
144
Dimesions incl. Packaging
122 x 93 x 36 mm
Weight incl. Packaging
98 g
