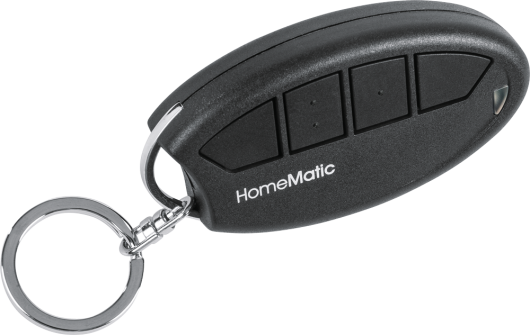

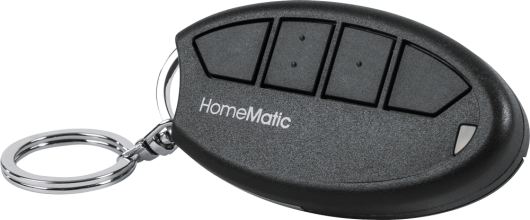

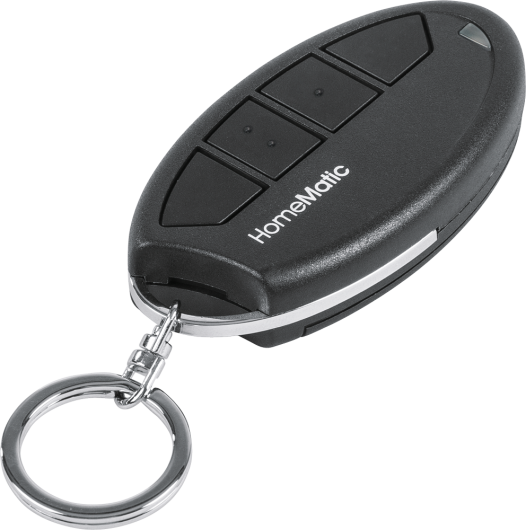

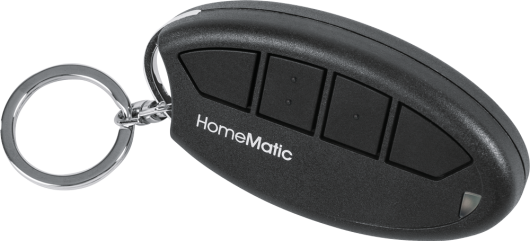

HomeMatic Remote Control, 4 buttons

Handy wireless remote control

HomeMatic Remote Control, 4 buttons HomeMatic Remote Control, 4 buttons HomeMatic Remote Control, 4 buttons HomeMatic Remote Control, 4 buttons HomeMatic Remote Control, 4 buttons HomeMatic Remote Control, 4 buttons
HomeMatic Remote Control, 4 buttons
HomeMatic Remote Control, 4 buttons
HomeMatic Remote Control, 4 buttons
HomeMatic Remote Control, 4 buttons
HomeMatic Remote Control, 4 buttons
HomeMatic Remote Control, 4 buttons
Highlights
  • Individual
    The 4 buttons of the Wireless Remote Control are freely configurable for controlling taught-in HomeMatic devices

  • Space-optimised

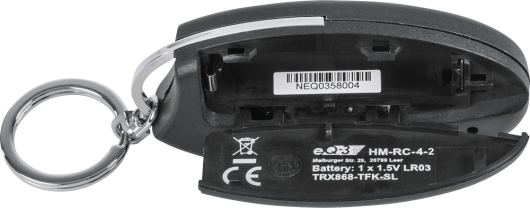

    Design enables use of AAA batteries

  • Easy
    No need of tools for changing batteries and haptic perception of buttons

  • Durable
    Glass fibre reinforced and halogen-free material offers optimal stability and environmental compatibility

  • Secure
    AES authentication can be fully used and direct feedback during wireless communication via duo colour LED

  • Convenient
    Key ring supplied

Technical Specifications
Supply voltage
1x 1,5 V LR03/micro/AAA
Current consumption
100 mA max.
Battery life
> 3 years (based on a usage rate of 10 times per day)
Degree of protection
IP20
Ambient temperature
-10 to +55 °C
Dimensions (W x H x D)
38 x 75 x 14 mm
Weight
38 g (incl. batteries)
Radio frequency
868.3 MHz
Typ. open area RF range
200 m
Ordering Informations
Product Name
HM-RC-4-3
Item Number
105397A0
EAN Code
4047976153978
Package
144
Dimesions incl. Packaging
122 x 93 x 36 mm
Weight incl. Packaging
98 g
Downloads
Manual
Product Data Sheet
Declaration of conformity
