Highlights
  • Enables operation of taught-in devices
  • Multiple actions can be performed at just one touch of a single button
  • Can be integrated into standard switch ranges
  • No restrictions regarding names you can enter for rooms and programs

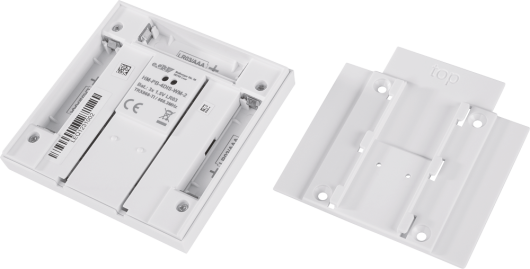

  • Can be positioned anywhere as it runs on batteries

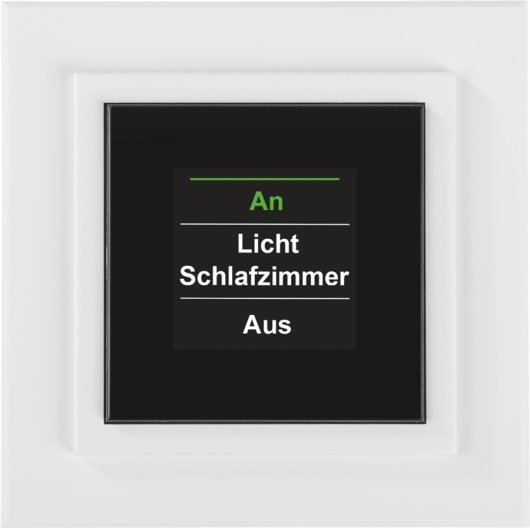

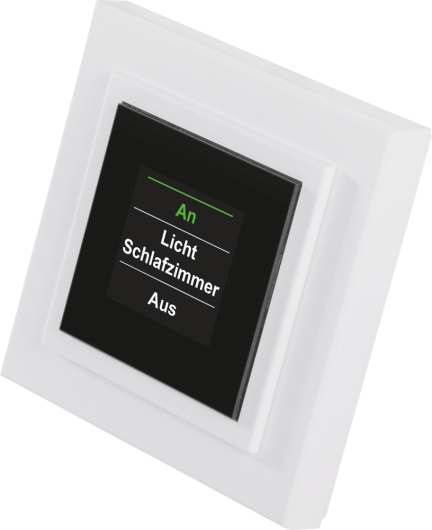

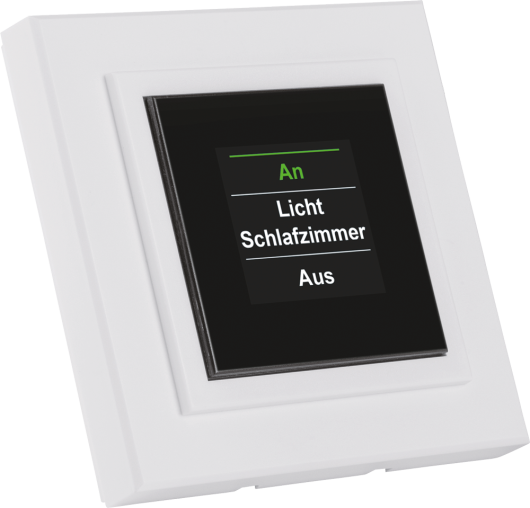

  • Graphical colour display
  • Display shows names and rooms as well as status messages of taughtin devices
  • Direct teach-in, as well as integration and programming via the Homematic Central Control Unit CCU2
  • Teach-in mode can be activated via the wall switch menu (the switch does not have to be removed)
  • Up to 100 devices (max. 10 per channel) can be taught-in
Technical Specifications
Supply voltage
3x 1.5 V LR03/micro/AAA
Current consumption
45 mA max.
Battery life
2 years (10 operations/day)
Ambient temperature
-10 to +55 °C
Degree of protection
IP20
Display
OLED fully graphical display
Dimensions (W x H x D)
83 x 83 x 18 mm
Weight
100 g (incl. batteries)
Typical open area RF range
300 m
Radio frequency
868.3 MHz
Ordering Informations
Product Name
HM-PB-4Dis-WM-2
Item Number
85975
EAN Code
4047976859757
Package
90
Dimesions incl. Packaging
122 x 112 x 48 mm
Weight incl. Packaging
193,0 g
Downloads
Manual
Product Data Sheet
Declaration of conformity
